LPG Gas Cylinders

The technical specifications for Iraqi Liquefied Petroleum Gas (LPG) cylinders, primarily managed by the Iraq Gas Filling and Services Company (GFC), are designed to meet rigorous safety standards. As of 2026, the Iraqi Ministry of Oil utilizes both traditional steel cylinders and modern composite versions.

Traditional Steel Cylinders

• Material: High-quality carbon steel, treated for corrosion resistance.
• Water Capacity: Approximately 26.2 Liters.
• Gas Content: 12 kg of LPG (Propane/Butane mix).
• Empty Weight (Tare): Ranges between 16 kg and 17.5 kg.
• Working Pressure: Designed to withstand pressures up to 17-20 bar.
• Valve Type: Standard brass valves with safety relief mechanisms, often color-coded or sealed with official GFC shrink-wraps to guarantee weight and quality.

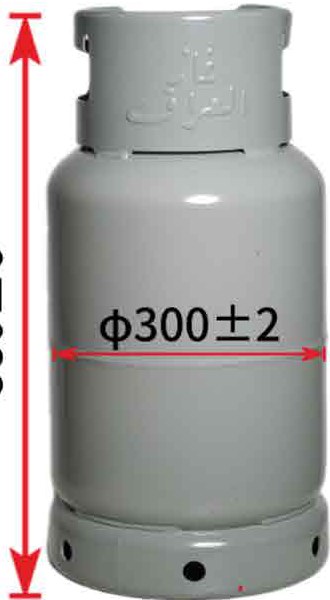

Dimensions

• Height: 580 ± 6 mm
• Diameter: Φ300 ± 2 mm
• Base/Foot Ring: 303 ± 2 mm

Manufacturing Process

• Raw Material
• Punching to Circle Blanking
• Deep Drawing
• Neck-in
• Foot Ring Support / Assembly

Product Description

A low-pressure, retrievable LPG gas cylinder made of high-quality steel, designed for household cooking use. Available in various capacities such as 11kg, 12.5kg, 18kg, and 19kg, these cylinders ensure safety and durability. They feature a standard upright design for easy storage and optimal gas flow, suitable for high-frequency use with stoves and heaters.
